AHC Series Time Control Switch Built-in Lithium Battery

AHC series time control switch 2 in 3 out built-in lithium battery c

Ahc Series Time Control Switch 2 in 3 out Built-In Lithium Battery

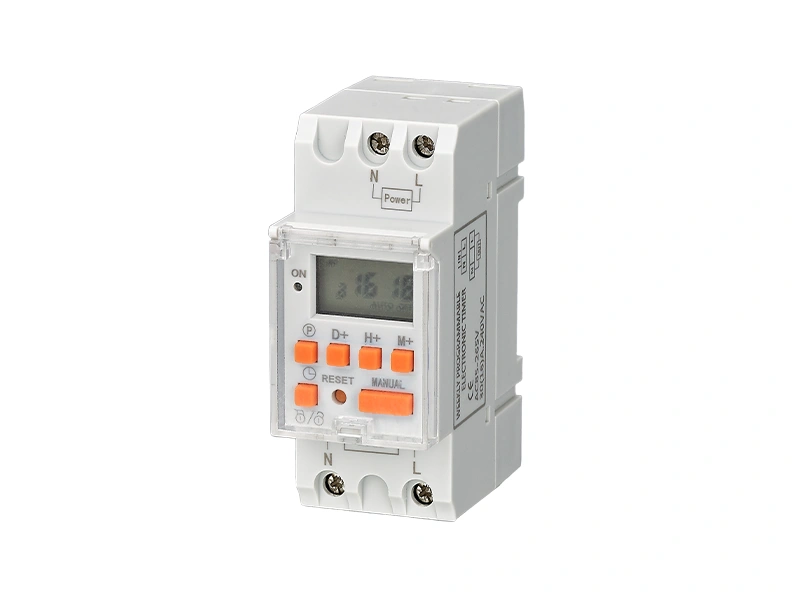

AHC-N-2-2-15A

AHC Series Time Control Switch Built-in Lithium Battery

Name: AHC Series Time Control Switch Built-in Lithium Battery
Brand: OBCH
SKU: 00070
Rating: 4.9 (85 reviews)

Model:	AHC-N-2-2-15A
Voltage:	220V
Current:	30A(resistive)
Function:	16 group,countdown, schedule

AHC-N-2-3-16A

Time control switch

Model:	AHC-N-2-3-16A
Voltage:	220V
Current:	16A
Function:	16 group,countdown, schedule

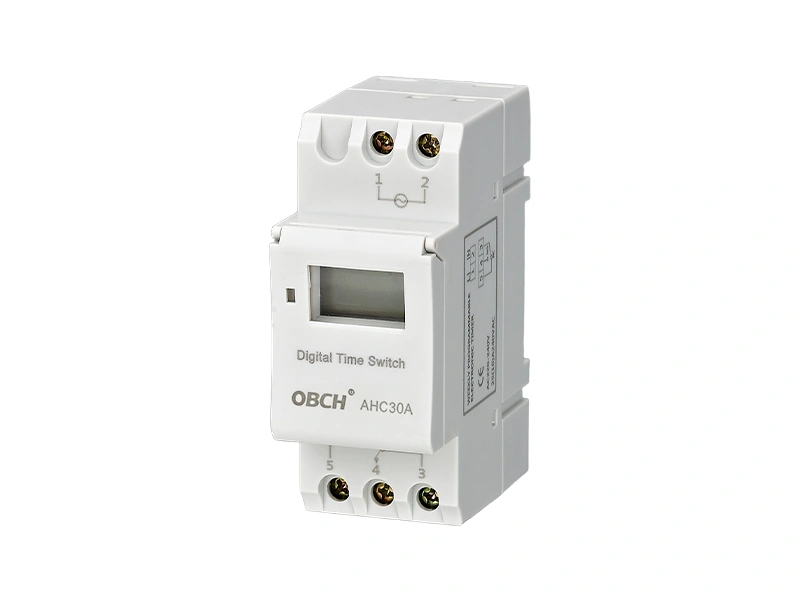

AHC-N-2-3-30A

AHC series time control switch 2 in 3 out built-in lithium battery

Model:	AHC-N-2-3-30A
Voltage:	220V
Current:	30A(resistive)
Function:	16 group,countdown, schedule

Specifications:

AHC AHC-N-2-3-16A AHC-N-2-3-30A

Get a Touch >>

Play Video

Application

Description

Technical Variables

Other

Product Introduction

It is extensively used for automating lighting, signage, production equipment, and numerous other electrical appliances in commercial, industrial, and agricultural settings.

Product structure and performance characteristics

Programmability: It typically supports multiple on/off programs (e.g., 16 settings) per day or week, allowing for complex scheduling needs.

Power Backup: A built-in lithium battery maintains the time and program settings during power outages, with backup periods ranging from several days to a few years, depending on the model.

Installation: Many models are designed for easy DIN rail mounting in electrical cabinets.

Its main applications include controlling billboard lighting, street lights, air conditioning systems, pumps, and other equipment to improve energy efficiency and automate operations.

Technical Specifications

Voltage	220 V
Current	15A
Wiring Method	2 in 2 out

@Voltage: AC180V-264V(50,60Hz)		@Number of circuits: change over switch (SPDT)			Error≤2s/day 25℃
@On/Off operation:16 on & 16 off	@Power 4.5VA (MAX)			@Bound: 1min-168hour
@Rechargeable battery				@Minimum interval: 1minute
@Load capacity: 16A 250VAC (Ohmic load cosφ=1)				@Service life: Mechanically:10 Electrically:10
@Humidity: 35-85%RH			@operating temperature: -10-55℃
